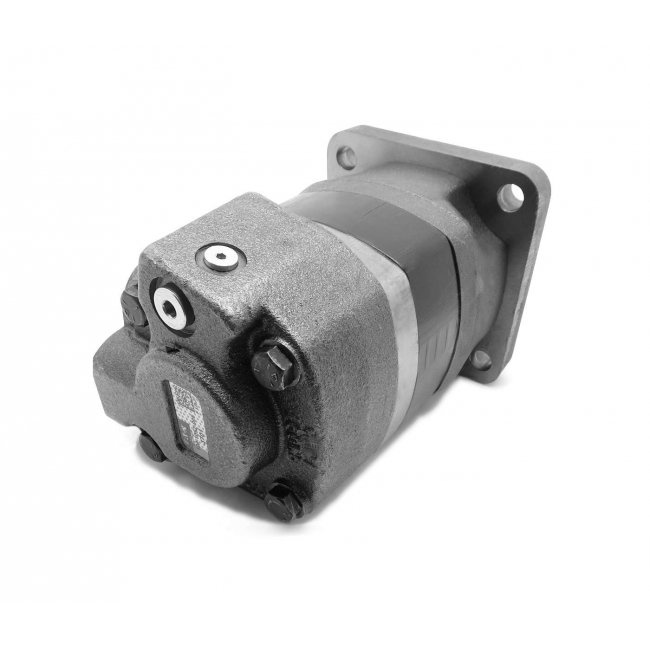

Гидравлический мотор
Eaton 109-1544-006
M04190AH11AC0300000000000AA00F
//M04150AU32AA06B0000002300ACALF // 250 cc
4000 SERIES
311.8 cm3/r [19.03 in3/r]
STANDARD; ISO FLANGE 125 B4HW (ISO 3019/2) 124.97 [4.920] PILOT DIA. 14.27 [.562] DIA.HOLES ON 160.00 [6.299] DIA. BOLT CIRCLE
40.00 [1.575] DIA. STRAIGHT WITH M12 X 1.75-6H THREAD, 7.955 [.3132] X 11.979 [.4716] WIDE X 69.98 [2.755] STRAIGHT KEY
//Shaft — 1 1/4″-14 Spline / 31.4mm
G 3/4 PORTS — STAGGERED PORTS
G 1/4 BSP STRAIGHT THREAD WITH CHECK VALVE
Bobcat S100
